The compass on the inside rear view mirror indicates the direction in which
the vehicle is heading.

Operation

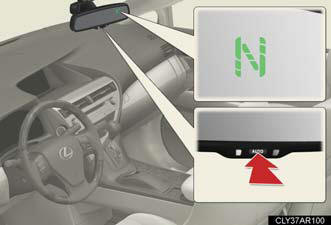

To turn the compass on or off, press “AUTO” for more than 3 seconds.

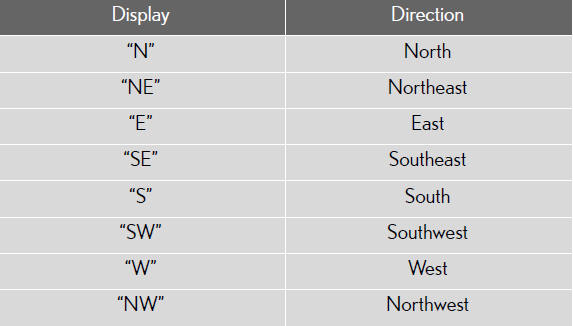

Displays and directions

Calibrating the compass

The direction display deviates from the true direction determined by the earth’s magnetic field. The amount of deviation varies depending on the geographic position of the vehicle.

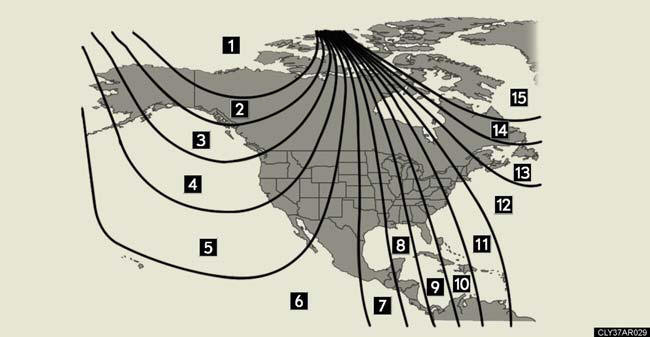

If you cross over one of the map boundaries shown in illustration, the compass will deviate.

To obtain higher precision or perfect calibration, refer to “Deviation calibration”.

Deviation calibration

Stop the vehicle in a place where it is safe to drive in a circle.

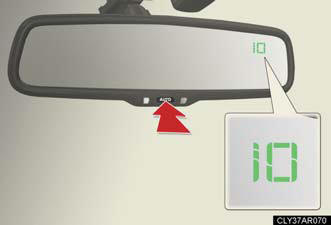

Press and hold “AUTO”.

A number (1 to 15) appears on the compass display.

Referring to the map above, press “AUTO” to select the number of the zone you are in.

If the direction is displayed for several seconds after adjustment, the calibration is complete.

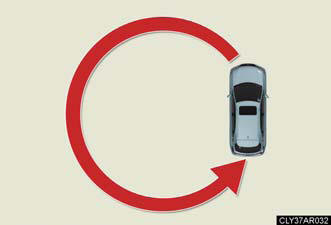

Circling calibration

If “C” appears on the display, drive the vehicle at 5 mph (8 km/h) or less in a circle until a direction is displayed.

If there is not enough space to drive in a circle, drive around the block until a direction is displayed.

Conditions unfavorable to correct operation

The compass may not show the correct direction in the following conditions: The vehicle is stopped immediately after turning.

The vehicle is on an inclined surface.

The vehicle is in a place where the earth's magnetic field is subject to interference
by artificial magnetic fields (underground car park/parking lot, under a steel tower, between buildings, roof car park/parking lot, near an intersection, near a large vehicle, etc.).

The vehicle has become magnetized. (There is a magnet or metal object near the inside rear view mirror.) The 12-volt battery has been disconnected.

A door is open.

CAUTION:
While driving the vehicle Do not adjust the display. Adjust the display only when the vehicle is stopped.

When doing the circling calibration Secure a wide space, and watch out for people and vehicles in the vicinity. Do not
violate any local traffic rules while performing circling calibration.

NOTICE:
To avoid the compass malfunctions Do not place magnets or any metal objects near the inside rear view mirror.

Doing this may cause the compass sensor to malfunction.

To ensure normal operation of the compass Do not perform a circling calibration of the compass in a place where the earth's
magnetic field is subject to interference by artificial magnetic fields.

During calibration, do not operate electric systems (moon roof, power windows, etc.) as they may interfere with the calibration.
