Power outlets

The power outlets can be used for the following components.

12 V: Accessories that run on less than 10 A.

120 VAC: Accessories that use less than 100 W.

- Inside the console (12 V).

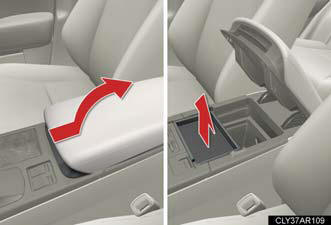

Slide the armrest while pulling


Slide the armrest while pulling up the lever, and lift the armrest.

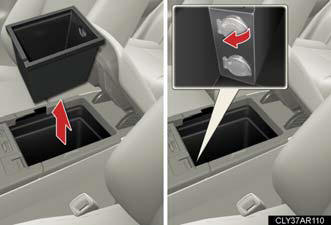

Remove the upper tray.

Remove the lower tray.


Remove the lower tray.

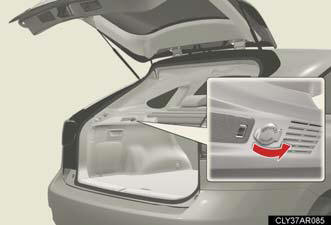

- Luggage compartment (12V)

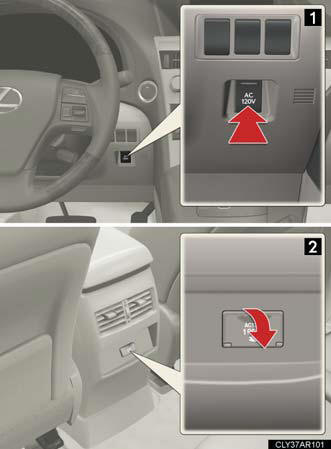

- On the back surface of the console (120 VAC*)


- On the back surface of the console (120 VAC*)

*: If equipped.


*: If equipped.

1. Main switch.

To use the power outlet, turn on the main switch.

2. Power outlet socket.

Routing accessory device cables

When the cover is slid open, accessory


When the cover is slid open, accessory device cables can be pulled through the opening.

The power outlets can be used when

- 12 V.

The УPOWERФ switch is in ACCESSORY or ON mode.

- 120 VAC.

The УPOWERФ switch is in ON mode.

NOTICE:
To avoid damaging the power outlets Close the power outlet lid when the power outlet is not in use.

Foreign objects or liquids that enter the power outlet may cause a short circuit.

To prevent the fuse from being blown Close the power outlet lid when the power outlet is not in use.

Foreign objects or liquids that enter the power outlet may cause a short circuit.

12 V: Do not use an accessory that uses more than 12 V 10 A.

120 VAC: Do not use a 120 VAC appliance that requires more than 100 W.

If a 120 VAC appliance that consumes more than 100 W is used, the protection circuit
will cut the power supply.

To prevent 12-volt battery discharge Do not use the power outlets longer than necessary when the hybrid system is off.

Appliances that may not operate properly (120 VAC) The following 120 VAC appliances may not operate properly even if their power consumption is under 100 W: Appliances with high initial peak wattage.

Measuring devices that process precise data.

Other appliances that require an extremely stable power supply.
