Using the hands-free system (for mobile phones)

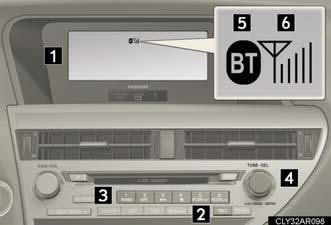

Audio unit

1. Display.


1. Display.

A message, name, phone
number, etc. is displayed.

Lower-case characters and special characters cannot be displayed.

2. Displays information that is too long to be displayed at one time on the display (press and hold).

3. Selects speed dials.

4. Selects items such as menu and number.

Turn: Selects an item.

Press: Inputs the selected item.

5. Bluetooth® connection condition.

If “BT” is not displayed, the hands-free phone system
cannot be used.

6. Reception level.

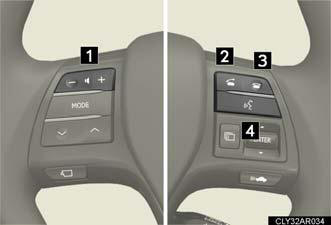

Steering wheel switches

1. Volume.


1. Volume.

During an incoming call: Adjusts the ring tone volume.

During an ongoing call:
Adjusts the receiver volume.

The voice guidance volume cannot be adjusted using this button.

2. Off-hook switch.

Turns the hands-free system on/starts a call.

3. On-hook switch.

Turns the hands-free system off/ends a call/refuses a call.

4. Talk switch.

Turns the voice command
system on (press)/turns the voice command system off (press and hold).

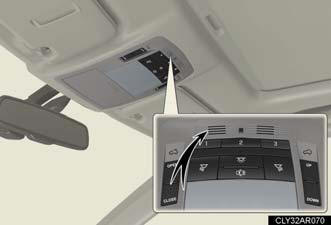

Microphone

Operating the system using voice commands


Operating the system using voice commands

By following voice guidance instructions output from the speaker, voice commands enable the operation of the hands-free phone system without the need to check the display or operate Operation procedure when using voice commands.


Operation procedure when using voice commands

Press the talk switch and follow voice guidance instructions.

Auxiliary commands when using voice commands

The following auxiliary commands can be used when operating the system using a voice command: “Cancel”: Exits the hands-free phone system.

“Repeat”: Repeats the previous voice guidance instruction.

“Go back”: Returns to the previous procedure.

“Help”: Reads aloud the function summary if a help comment is registered for the selected function.

Using the hands-free phone system for the first time

Before using the hands-free phone system, it is necessary to register a mobile phone in the system. The system will enter phone registration mode automatically when starting the system with no mobile phone registered.

Follow the procedure below to register (pair) a mobile phone: 1. Press the off-hook switch or the talk switch.

The introductory guidance and phone name registration instructions are heard.

2. Select “Pair Phone” using a voice command or 3. Register a phone name by either of the following methods:.


3. Register a phone name by either of the following methods: a. Select “Record Name” using say the name to be, and
say the name to be
registered.

b. Press the talk switch and say the name to be registered.

A voice guidance instruction to confirm the input is heard.

4. Select “Confirm” using a voice command or A passkey is displayed and heard, and a voice guidance instruction for.


A passkey is displayed and heard, and a voice guidance instruction for inputting the passkey into the mobile phone is heard.

5. Input the passkey into the mobile phone.

Refer to the manual that comes with the mobile phone for the operation of the phone.

Guidance for registration completion is heard.

If the mobile phone has a Bluetooth® audio player, the audio player can be registered at the same time. A voice guidance instruction to register a Bluetooth® audio player is heard.

6. Select “Yes” or “No” using a voice command or Menu list of the hands-free phone system.

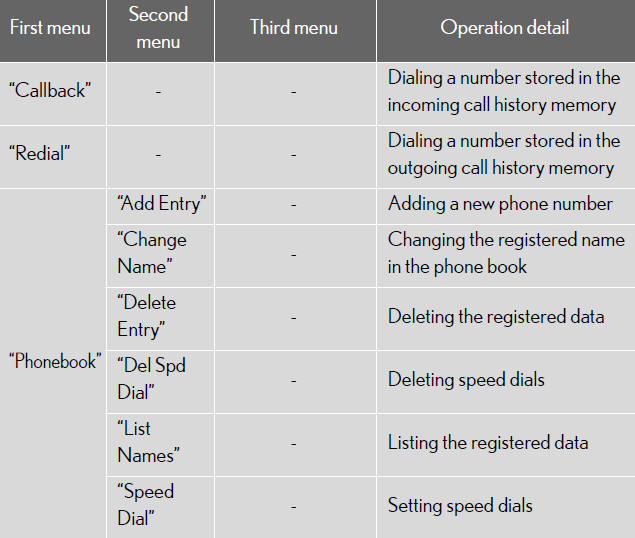

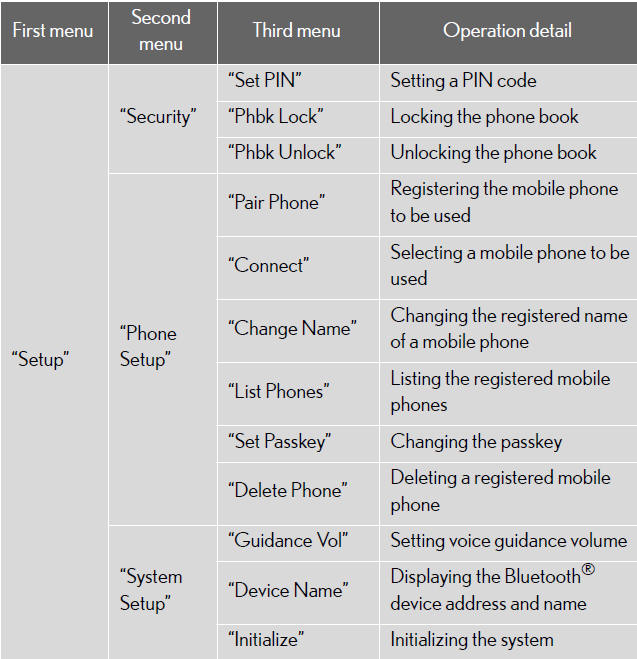

Menu list of the hands-free phone system

Normal operation

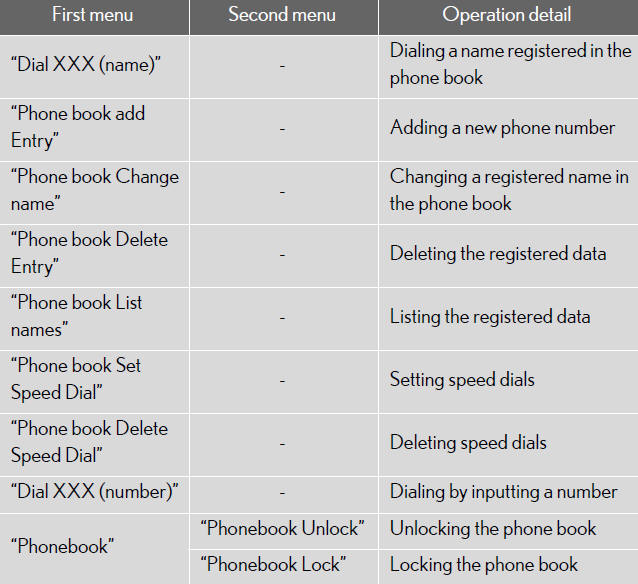

Short cut key operation


Short cut key operation

Automatic volume adjustment


Automatic volume adjustment

When vehicle speed reaches 50 mph (80 km/h) or more, the volume automatically increases. The volume returns to the previous volume setting when vehicle speed drops to 43 mph (70 km/h) or less.

When using a voice command

For numbers, say a combination of single digits from zero to nine, # (pound), ∗ (star), and + (plus).

Say the command correctly and clearly.

Situations in which the system may not recognize your voice

When driving on rough roads.

When driving at high speeds.

When air is blowing out of the vents onto the microphone.

When the air conditioning fan emits a loud noise.

Operations that cannot be performed while driving

Operating the system withRegistering a mobile phone to the system..


Registering a mobile phone to the system.
