Rear window wiper and washer

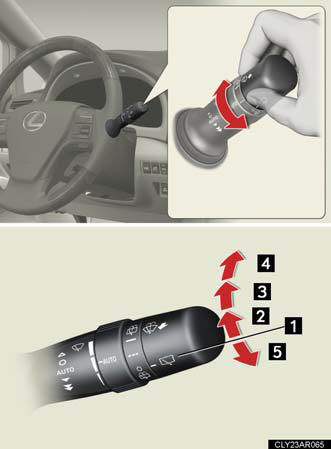

The wiper operation is selected by moving the lever as follows:

1. Off.


1. 2. Intermittent windowOff.


2. wiper operation.Intermittent window
wiper operation.

3. operation.Normal window wiper
operation.

4. operation.Washer/wiper dual
operation.

5. operation.Washer/wiper dual
operation.

The rear window wiper and washer can be operated when

The “POWER” switch is in ON mode.

NOTICE:
When the rear window is dry Do not use the wipers, as they may damage the rear window.

When the washer fluid tank is empty Damage to the washer fluid pump may be caused if the lever is operated continually.

When a nozzle becomes blocked Do not try to clear it with a pin or other object. The nozzle will be damaged.
