Headlight aim (vehicles with discharge headlights)

Lexus ES / Lexus ES 350 user manual / Maintenance and care / Do-it-yourself maintenance / Headlight aim (vehicles with discharge headlights)

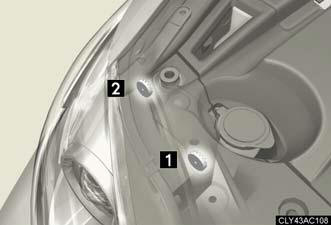

Vertical movement adjusting bolts

1. Adjustment bolt A.


1. Adjustment bolt A.

2. Adjustment bolt B.

Before checking the headlight aim

1. Make sure the vehicle has a full tank of gas and the area around the headlight is not deformed.

2. Park the vehicle on level ground.

3. Sit in the driver’s seat.

4. Bounce the vehicle several times.

Adjusting the headlight aim

Remove the engine compartment cover.

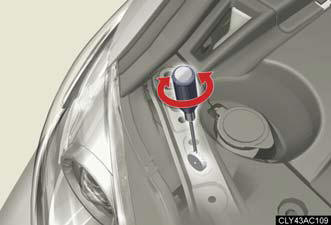

Turn bolt A in either direction


Turn bolt A in either direction using a Phillips-head screwdriver.

Remember the turning direction and the number of turns in mind.

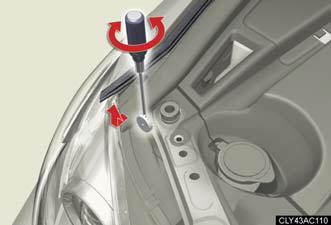

Turn bolt B the same number of


Turn bolt B the same number of turns and in the same direction as step 1 using a Phillips-head screwdriver.

If the error is over the value specified above, take the vehicle to your Lexus dealer to adjust the headlight aim.
