Electronic key battery

Replace the battery with a new one if it is discharged.

You will need the following items:

Flathead screwdriver.

- Small Phillips-head screwdriver.

- Lithium battery (CR1632).

Replacing the battery

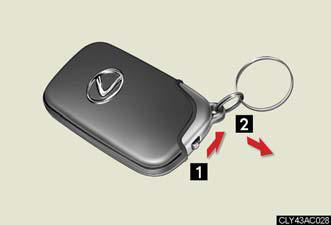

Take out the mechanical key.


Take out the mechanical key.

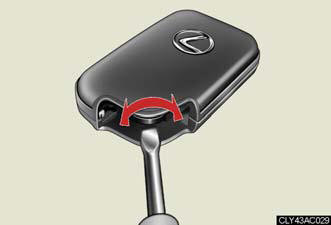

Remove the cover.


Remove the cover.

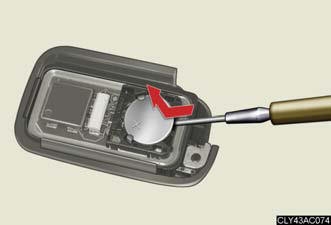

Remove the depleted battery.


Remove the depleted battery.

Insert a new battery with the + terminal facing up.

If the electronic key battery is discharged

The following symptoms may occur.

- The smart access system with push-button start and wireless remote control will
not function properly.

- The operational range is reduced.

Use a CR1632 lithium battery

l Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.

- Replace only with the same or equivalent type recommended by a Lexus dealer.

- Dispose of used batteries according to the local laws.

CAUTION:
Removed battery and other parts Keep away from children.

These parts are small and if swallowed by a child they can cause choking.

NOTICE:
For normal operation after replacing the battery Observe the following precautions to prevent accidents.

- Always work with dry hands.

Moisture may cause the battery to rust.

- Do not touch or move any other components inside the remote control.

- Do not bend either of the battery terminals.
