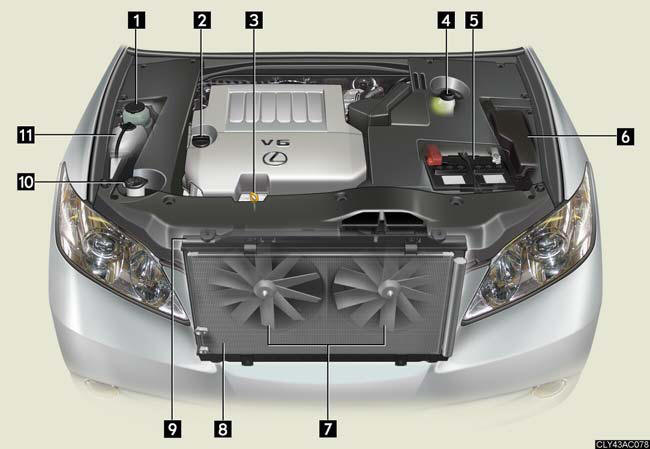

1. Power steering fluid reservoir.
2. Engine oil filler cap.
3. Engine oil level dipstick.
4. Brake fluid reservoir.
6. Fuse box.
7. Electric cooling fans.
10. Washer fluid tank.
11. Engine coolant reservoir.
Engine compartment cover

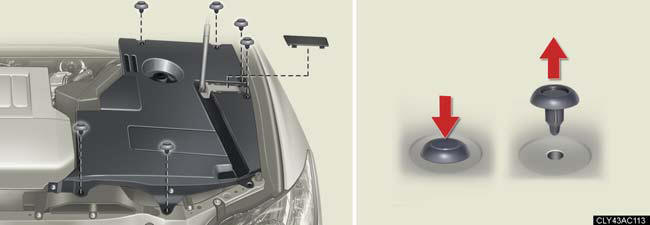

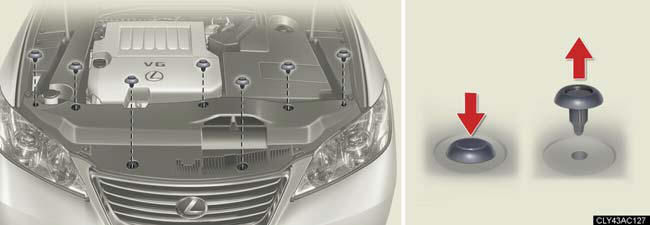

Removing the engine compartment cover

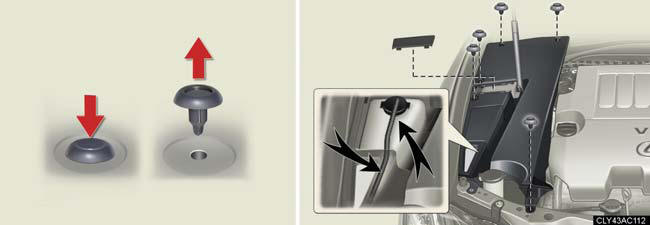

When installing the cover, make sure that the engine coolant reservoir hose positioned as shown in the illustration.

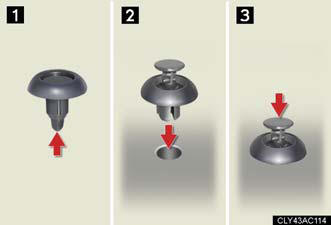

Installing the clips
1. Press the tip of the clip against a hard surface, such as a desk, to allow the center part of the clip to be pushed up.

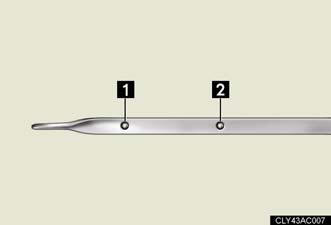

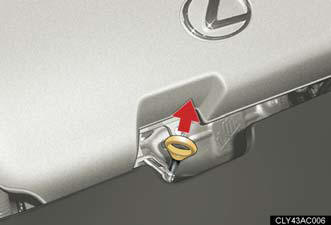

With the engine at operating temperature and turned off, check the oil level on the dipstick.
Checking the engine oil
1. Park the vehicle on level ground. After turning off the engine, wait more than five minutes for the oil to drain back into the bottom of the engine.
2. Hold a rag under the end and pull the dipstick out.
3. Wipe the dipstick clean.
4. Reinsert the dipstick fully.
5. Holding a rag under the end, pull the dipstick out and check the oil level.
6. Wipe the dipstick and reinsert it fully.

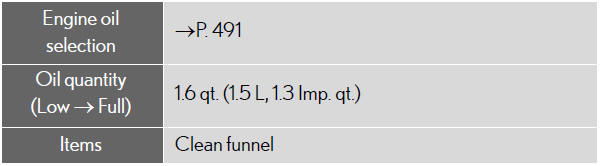

Adding engine oil
If the oil level is below or near the low level mark, add engine oil of the same type as already in the engine.
Make sure to check the oil type and prepare the items needed before adding oil.

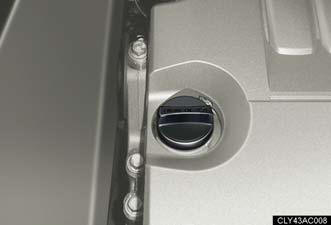

1. Remove the oil filler cap.
2. Add engine oil slowly, checking the dipstick.
3. Install the filler cap, turning it clockwise.
Engine oil consumption
The amount of engine oil consumed depends on the oil viscosity, the quality
the oil and the way the vehicle is driven.
- More oil is consumed under driving conditions such as high speeds and frequent acceleration and deceleration.
- A new engine consumes more oil.
- When judging the amount of oil consumption, keep in mind that the oil may have become diluted, making it difficult to judge the true level accurately.
- Oil consumption: Max. 1.1 qt./600 miles, 0.9 lmp.qt./600 miles (1.0 L per 1000
- If you consume more than 1.1 qt. (1.0 L, 0.9 lmp.qt.) every 600 miles (1000 km),
contact your Lexus dealer.
Changing the engine oil (USA only)
To reset the oil change system, follow the procedure below: 1. Turn the “ENGINE START STOP” switch OFF with the trip meter A reading shown.
2. While pressing the trip meter reset button, set the “ENGINE START STOP” switch to the IGNITION ON mode. Continue to press and hold the button until the trip meter displays “000000”.
Used engine oil
- Used engine oil contains potentially harmful contaminants which may cause skin disorders such as inflammation or skin cancer, so care should be taken to avoid prolonged and repeated contact. To remove used engine oil from your skin, wash thoroughly with soap and water.
- Dispose of used oil and filters only in a safe and acceptable manner. Do not
of used oil and filters in household trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information
recycling or disposal.
- Do not leave used engine oil within the reach of children.
To prevent serious engine damage Check the oil level on regular basis.
When replacing the engine oil - Be careful not to spill engine oil on the vehicle components.
- Avoid overfilling, or the engine could be damaged.
- Check the oil level on the dipstick every time you refill the vehicle.
- Be sure the engine oil filler cap is properly retightened.

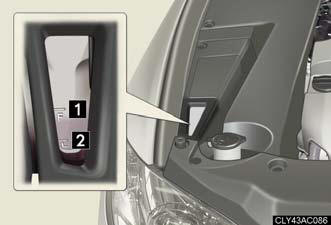

The coolant level is satisfactory if it is between the F and L lines on the
when the engine is cold.
If the level is on or below the L line, add coolant up to the F line.
When adding the engine coolant
When installing the reservoir cap, make sure that the engine coolant reservoir hose positioned as shown in the illustration.
If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, engine coolant filler cap, radiator cap,
and water pump.
If you cannot find a leak, have your Lexus dealer pressure test the cap and
leaks in the cooling system.
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
USA: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water. (Enabled: -31°F [-35°C]).
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized water. (Enabled: -44°F [-42°C]).
For more details about engine coolant, contact your Lexus dealer.
When the engine is hot
Do not remove the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the cap is removed, causing burns or other injuries.
When adding engine coolant Coolant is neither plain water not straight antifreeze. The correct mixture of water
and anti freeze must be used to provide proper lubrication, corrosion protection and cooling. Be sure to read the antifreeze or coolant label.
If you spill coolant
Be sure to wash it off with water to prevent damage to parts or paint.
Radiator and condenser
Check the radiator and condenser and clear any foreign objects.
If either of the above parts are extremely dirty or you are not sure of their condition, have your vehicle checked by your Lexus dealer.
When the engine is hot
Do not touch the radiator or condenser, as they may be hot and you may be burned.

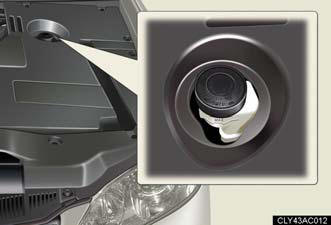

Checking fluid level
The brake fluid level should be between the “MAX” and “MIN” lines on the tank.
Make sure to check the fluid type and prepare the necessary items.
Brake fluid can absorb moisture from the air
Excess moisture in the fluid can cause a dangerous loss of braking
only newly opened brake fluid.
When filling the reservoir Take care because brake fluid can harm your hands or eyes and damage painted surfaces.
If fluid gets in your eyes, flush your eyes with clean water immediately.
If you still experience discomfort, see a doctor.
If the fluid level is low or high It is normal for the brake fluid level to go down slightly as the brake pads wear or
when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

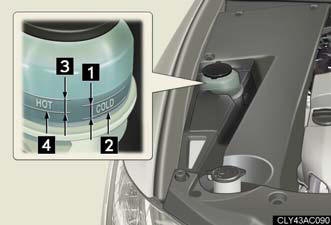

Power steering fluid
The fluid level should be within the appropriate range.
1. Full (when cold).
2. Add fluid (when cold).
3. Full (when hot).
4. Add fluid (when hot).
Hot: Vehicle has been driven around 50 mph (80 km/h) for 20 minutes, or slightly longer in frigid temperatures. (Fluid temperature, 140°F - 175°F [60°C - 80°C]).
Cold: Engine has not been run for about 5 hours. (Room temperature, 50°F - 85°F [10°C - 30°C]).
Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
1. Clean all dirt off the reservoir.
2. Remove the reservoir cap by turning it counterclockwise and wipe the dipstick clean.
3. Reinstall the reservoir cap.
4. Remove the reservoir cap again and look at the fluid level.
Checking the fluid level Take care, as the reservoir may be hot.
When adding fluid
Avoid overfilling, or the power steering may be damaged.
After replacing the reservoir cap Check the steering box case, vane pump and hose connections for leaks or damage.

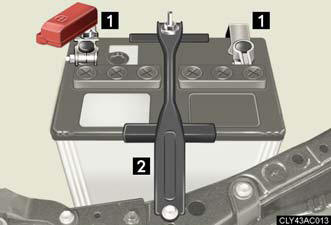

Check the battery as follows.
Make sure that the battery terminals are not corroded and that there are no loose connections, cracks, or loose clamps.
2. Hold-down clamp.

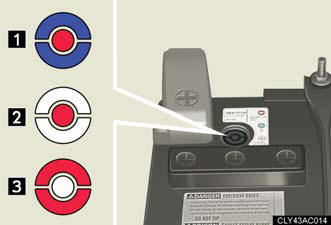

Checking battery condition (vehicles with the battery indicator)
Check the battery condition using the indicator color.
1. Blue: Good condition.
2. White: Charging is necessary.
Have the vehicle inspected by your Lexus dealer.
3. Red: Not working properly, have the battery checked by your Lexus dealer.
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, before recharging:
- If recharging with the battery installed on the vehicle, be sure to disconnect
- Make sure the power switch on the charger is off when connecting and
the charger cables to the battery.
After recharging the battery
The engine may not start. Follow the procedure below to initialize the system.
1. Shift the shift lever to P.
2. Open and close any of the doors.
3. Restart the engine.
Chemicals in the battery A battery contains poisonous and corrosive sulfuric acid and may produce hydrogen
gas which is flammable and explosive. To reduce the risk of death or serious injury, take the following precautions while working on or near battery: - Do not cause sparks by touching the battery terminals with tools.
- Do not smoke or light a match near the battery.
- Avoid contact with eyes, skin and clothes.
- Never inhale or swallow electrolyte.
- Wear protective safety glasses when working near the battery.
- Keep children away from the battery.
Where to safety charge the battery
Always charge the battery in an open area. Do not charge the battery in a garage
closed room where there is not sufficient ventilation.
How to recharge the battery
Only perform a slow charge (5 A or less). The battery may explode if charged at
Emergency measures regarding electrolyte
- If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immediate
attention. If possible, continue to apply water with a sponge or cloth while traveling to the nearest medical facility.
- If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
- If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the clothing
follow the procedure above if necessary.
- If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Follow with milk of magnesia, beaten
egg or vegetable oil. Get emergency medical attention immediately.
When recharging the battery Never recharge the battery while the engine is running. Also, be sure all accessories
are turned off.

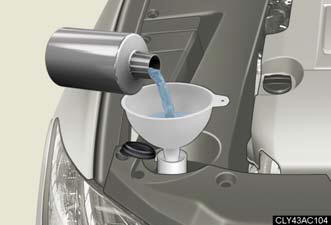

If any washer does not work or the warning message appears on the multi-information display, the washer tank may be empty. Add washer fluid.
When refilling the washer fluid Do not refill the washer fluid when the engine is hot or running, as the washer fluid
contains alcohol and may catch fire if spilled on the engine etc.
Do not use any fluid other than washer fluid Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the washer fluid tank.
Fuel pump shut off system
To minimize the risk of fuel leakage when the engine stalls or an airbag inflates upon collision, the fuel pump shut off system stops supplying fuel to the engine. Follow the procedure below to res ...
