Garage door opener
The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, and security systems, and other devices.
The garage door opener (HomeLink« Universal Transceiver) is manufactured under license from HomeLink«.
Programming the HomeLink«

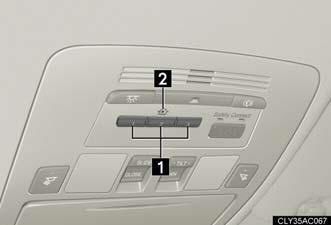

The HomeLink« compatible transceiver in your vehicle has 3 buttons which can be programmed to operate 3 different devices. Refer to the programming method below appropriate for the device.
Programming the HomeLink« (for U.S.A. owners)

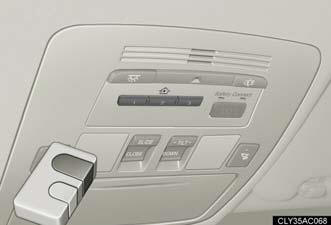

Point the remote control transmitter for the device 1 to 3 in. (25 to 75 mm) from the HomeLink« buttons.
Keep the HomeLink« indicator light in view while programming.

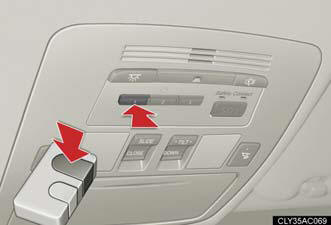

Press and hold one of the
HomeLink« buttons and the transmitter
button. When the
HomeLink« indicator light changes from a slow to a rapid flash, you can release both buttons.
If the HomeLink« indicator light comes on but does not flash, flashes rapidly for 2 seconds and remains lit, the HomeLink« button is already programmed.
Use the other buttons or follow
the ôReprogramming a
HomeLink« buttonö instructions.

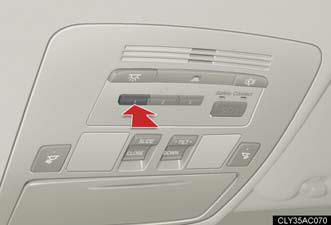

Test the HomeLink« operation by pressing the newly programmed button.
If a HomeLink« button has been programmed for a garage door, check to see if the garage door opens and closes. If the garage door does not operate, see if your remote control transmitter is of the rolling code type. Press and hold the programmed HomeLink« button.
The remote control transmitter is of the rolling code type if the HomeLink« indicator light flashes rapidly for 2 seconds and then remains lit. If your transmitter is of the rolling code type, proceed to the heading ôProgramming a rolling code systemö.
Repeat the steps above to program another device for each of the remaining HomeLink« buttons.
Programming a Rolling Code system (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the heading ôProgramming the HomeLink«ö before proceeding with the steps listed below.
1. Locate the learn button on the ceiling mounted garage door opener motor. The exact location and color of the button may vary by brand of garage door opener motor.
Refer to the operation manual supplied with the garage door opener motor for the location of the learn button.
2. Press the learn button.
Following this step, you have 30 seconds in which to initiate step 3 below.
3. Press and hold the vehicle's programmed HomeLink« button for 2 seconds and release it. Repeat this step once again. The garage door may open.
If the garage door opens, the programming process is complete. If the door does not open, press and release the button a third time. This third press and release will complete the programming process by opening the garage door.
The ceiling mounted garage door opener motor should now recognize the HomeLink« transceiver and operate the garage door.
4. Repeat the steps above to program another rolling code system for any of the remaining HomeLink« buttons.
Programming an entry gate (for U.S.A. owners)/Programming all devices in the Canadian market
1. Place your transmitter 1 to 3 in. (25 to 75 mm) away from the surface of the HomeLink«.
Keep the HomeLink« indicator light in view while programming.
2. Press and hold the selected HomeLink« button.
3. Repeatedly press and release (cycle) the deviceĺs remote control button for two seconds each until step 4 is complete.
4. When the indicator light on the HomeLink« compatible transceiver start to flashing rapidly, release the buttons.
5. Test the operation of the HomeLink« by pressing the newly programmed button. Check to see if the gate/device operates correctly.
6. Repeat the steps above to program another device for each of the remaining HomeLink« buttons.
Programming other devices
To program other devices such as home security systems, home door locks or lighting, contact your authorized Lexus dealer for assistance.
Reprogramming a button
The individual HomeLink« buttons cannot be erased but can be reprogrammed. To reprogram a button, follow the ôReprogramming a HomeLink« buttonö instructions.
Operating the HomeLink«
Press the appropriate HomeLink« button. The HomeLink« indicator light should come on.
The HomeLink« compatible transceiver in your vehicle continues to send a signal for up to 20 seconds as long as the button is pressed.
Reprogramming a HomeLink« button
Press and hold the desired HomeLink« button. After 20 seconds, the HomeLink« indicator light will start flashing slowly. Next, while still pressing and holding the HomeLink« button, press and hold the button on the transmitter until the HomeLink« indicator light changes from a slow to a rapid flash.

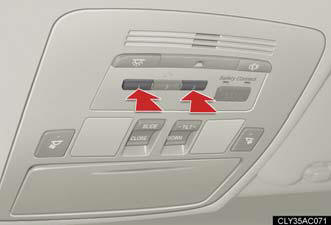

Erasing the entire HomeLink« memory (all three programs)
Press and hold the 2 outside buttons for 10 seconds until the indicator light flashes.
If you sell your vehicle, be sure to erase the programs stored in the HomeLink« memory.
Install a new battery in the remote control transmitter.
- The battery side of the remote control transmitter must be pointed away from the HomeLink« button.
Certification for the garage door opener
For vehicles sold in the U.S.A..
FCC ID: CB2070AHL4.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
When support is necessary
Visit on the web at www.homelink.com or call 1-800-355-3515.
When programming a garage door or other remote control device The garage door on other devices may operate, so ensure people and objects are out of danger to prevent potential harm.
Conforming to federal safety standards
Do not use the HomeLink« Compatible Transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal
This includes any garage door that cannot detect an obstruction object. A door
device without these features increases the risk of death or serious injury.
