Cup holders

Cup holders

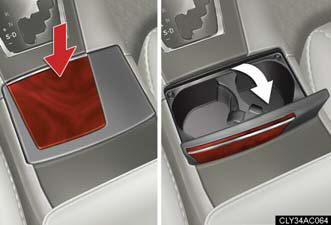

Front


To open, press down and release


To open, press down and release the front of the cup holder lid.

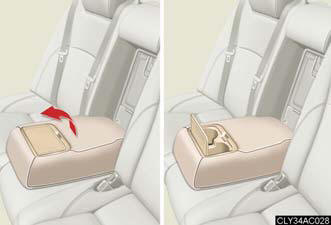

Rear


Using the cup holder (front) to store small items


Using the cup holder (front) to store small items

Remove the holder.


Remove the holder.

The cup holder (front) can be adjustable to the size of the cups or drink-cans

Change the holder position.


Change the holder position.

CAUTION:
Items unsuitable for the cup holder Do not place anything other than cups or aluminum cans in the cup holders.

Other items may be thrown out of the holders in the event of an accident or sudden
braking and cause injury. If possible, cover hot drinks to prevent burns.

When not in use
Keep the cup holders closed.

Injuries may result in the event of an accident or sudden braking.
