Interior lights list
Your Lexus is equipped with the illuminated entry system to assist in
entering

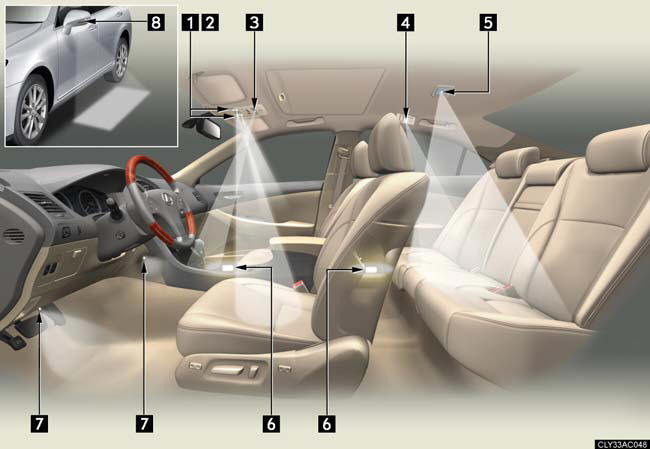

the vehicle. Owing to the function of the system, the lights shown in the
following illustration automatically turn on/off according to the presence of
the electronic key, whether the doors are locked/unlocked, whether the
doors are opened/closed, and the “ENGINE START STOP” switch mode.
1. Front personal lights.
2. Front interior lights.
3. Shift lever lighting.
This light turns on or off depending on the darkness of the surroundings when the “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
4. Rear personal lights.
5. Rear interior light .
6. Door courtesy lighting.
7. Front foot well lighting.
8. Outer foot lights.
To prevent the battery from being discharged
If the following lights remain ON when the door is not fully closed and the
door
position is ON, the lights will go off automatically after 20 minutes.
- Interior lights.
- Front personal lights.
- Front foot well lighting.
- Rear door courtesy lighting.
Customization that can be configured at Lexus dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
