Hands-free system for mobile phones
The hands-free system is a function that allows you to use your mobile phone without touching it.
This system supports Bluetooth® mobile phones. Bluetooth® is a wireless data system that allows the mobile phone to wirelessly connect to the hands-free system and make/receive calls.
Vehicles with a navigation system
Owners of models equipped with a navigation system should refer to the “Navigation System Owner's Manual”.
Vehicles without a navigation
Conditions under which the system will not operate
If using a mobile phone that does not support Bluetooth®.
- If the mobile phone is switched off.
- If you are outside service range.
- If the mobile phone is not connected.
- If the mobile phone's battery is low.
- If the mobile phone is behind the seat or in the glove box or console box.
- If metal is covering or touching the phone.
When using the hands-free system
The audio system and voice guidance are muted when making a call.
- If both parties speak at the same time, it may be difficult to hear.
- If the incoming call volume is overly loud, an echo may be heard.

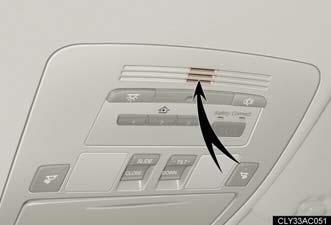

- Try to face toward the microphone as much as possible when speaking.
- In the following circumstances, it may be difficult to hear the other party: • When driving on unpaved roads.
• When driving at high speeds.
• When a window is open.
• When the air conditioning is blowing directly on the microphone.
• When the air conditioning is set to high.
When transferring ownership of the vehicle
Be sure to initialize the system to prevent the personal data from being
Bluetooth is a registered trademark of Bluetooth SIG. Inc.
Compatible with HFP (Hands Free Profile) Ver. 1.0 or higher (Conformed: Ver.
and OPP (Object Push Profile) Ver. 1.1.
If your mobile phone does not support HFP, you cannot enter the Bluetooth® phone. If your mobile phone supports OPP alone, you cannot use the Bluetooth® phone.
Certification for the hands-free system
FCC ID: AJDK018.
IC ID: 775E-K018.
MADE IN JAPAN.
This device complies with Part 15 of the FCC Rules and RSS-Gen and RSS-210 of
IC Rules. Operation is subject to the following two conditions: (1) This device
not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Radio Frequency Radiation Exposure. This equipment complies with FCC radiation
exposure limits set forth for uncontrolled equipment and meets the FCC radio
(RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated
with at least 7.9 in. (20 cm) and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles).
This transmitter must not be co-located or operated in conjunction with any
antenna or transmitter.
Caution while driving
Do not use a mobile phone or connect the Bluetooth® phone.
To prevent damage to mobile phone Do not leave mobile phone in the vehicle. The temperature inside may become high resulting in damage to the phone.

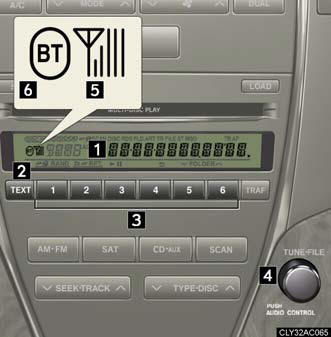

Using the hands-free system (for mobile phone)
A message, name, phone
number, etc. is displayed.
Lower-case characters and special characters cannot be displayed.
2. Displays information that is too long to be displayed at one time on the display (press and hold).
3. Selects speed dials.
4. Selects items such as menu or number.
Turn: Selects an item.
Press: Inputs the selected item.
5. Reception level.
6. Bluetooth® connection condition.
If “BT” is not displayed, the hands-free system cannot be used.

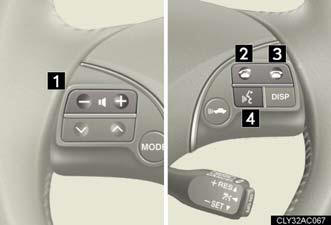

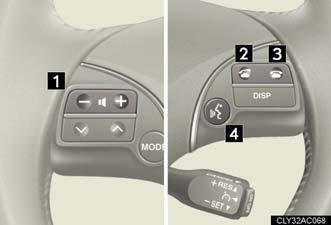

Steering wheel switches
During an incoming call:
Adjusts the ring tone volume
During an ongoing call:
Adjusts the receiver volume The voice guidance volume cannot be adjusted using this button.
2. Off-hook switch.
Turns the hands-free system
on/starts a call
3. On-hook switch.
Turns the hands-free system off/ends a call/refuses a call 4. Talk switch.
Turns the voice command
system on (press)/turns the voice command system off (press and hold)
Operating the system using voice commands
By following voice guidance instructions output from the speaker, voice commands enable to the operation of the hands-free system without the need to check the display or operate .
Operation procedure when using voice commands
Press the talk switch and follow voice guidance instructions.
Auxiliary commands when using voice commands
The following auxiliary commands can be used when operating the system using a voice command: “Cancel”: Exits the hands-free system.
“Repeat”: Repeats the previous voice guidance instruction.
“Go back”: Returns to the previous procedure.
“Help”: Reads aloud the function summary if a help comment is registered for the selected function.
Using the hands-free system for the first time
Before using the hands-free system, it is necessary to register a mobile phone in the system. The system will enter phone registration mode automatically when starting the system with no mobile phone registered. Follow the procedure below to register (pair) a mobile phone: 1. Press the off-hook switch or the talk switch.
The introductory guidance and phone name registration instructions are heard.
2. Select “Pair Phone” using a voice command or .
3. Register a phone name by either of the following methods.
a. Select “Record Name” by using ,
and say a name to be
b. Press the talk switch and say a name to be registered.
A voice guidance instruction to confirm the input is heard.
4. Select “Confirm” by using a voice command or .
A passkey is displayed and heard, and voice guidance instruction for inputting the passkey into the mobile phone is heard.
5. Input the passkey into the mobile phone.
Refer to the manual that comes with the mobile phone for the operation of the phone.
Guidance for registration completion is heard.
If the mobile phone has a Bluetooth® audio player, the audio player can be registered at the same time. A voice guidance instruction to register a Bluetooth® audio player is heard.
6. Select “Yes” or “No” using a voice command or .

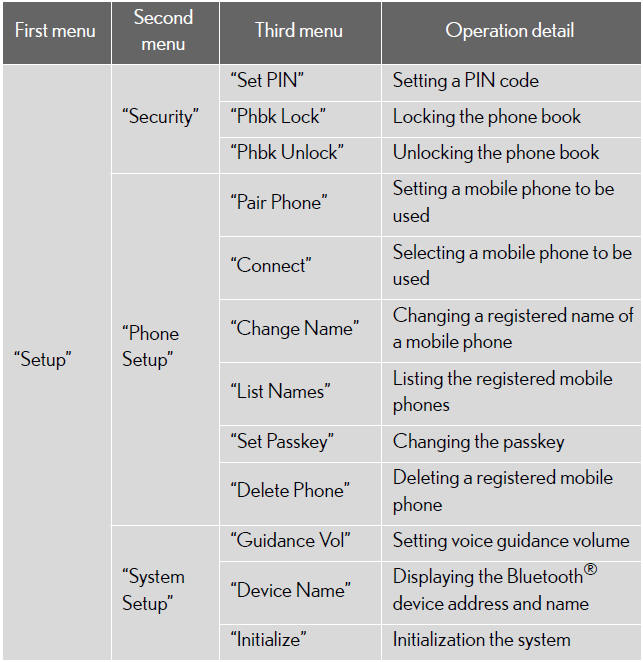

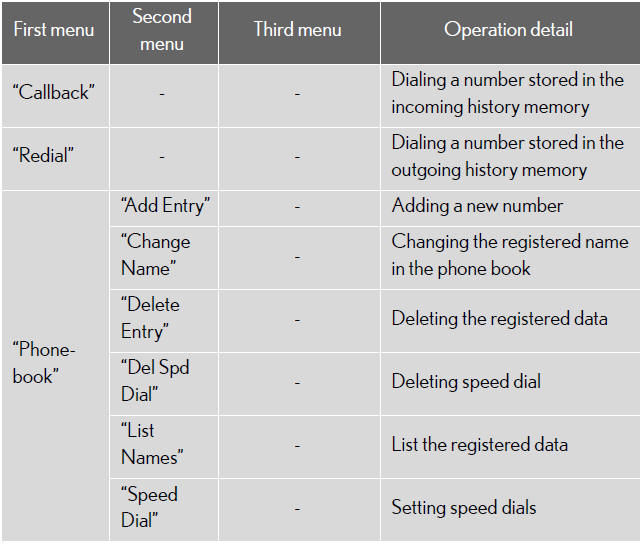

Menu list of the hands-free system

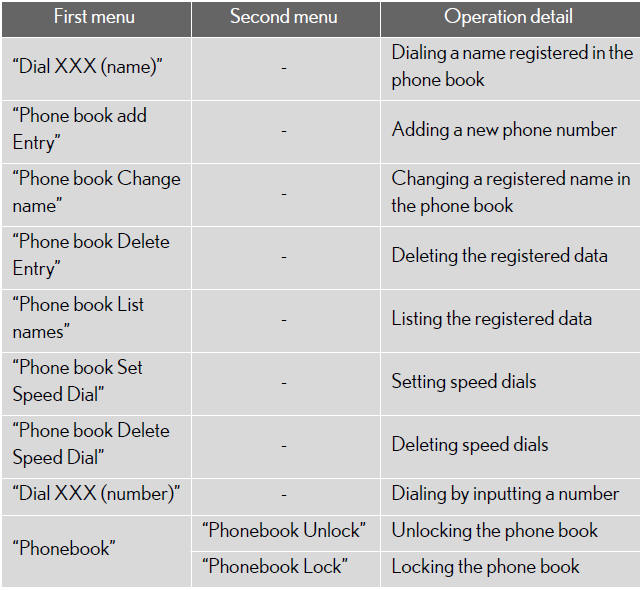

Using a short cut key
Automatic volume adjustment
When vehicle speed reaches 50 mph (80 km/h) or more, the volume automatically increases. The volume returns to the previous volume setting when vehicle speed drops to 43 mph (70 km/h) or less.
When using a voice command
For numbers, say a combination of single digits from zero to nine, # (pound), ∗ (star), and + (plus).
Say a command correctly and clearly.
Situations that the system may not recognize your voice
When driving on rough road.
- When driving at high speeds.
- When air is blowing out of the vents onto the microphone.
- When the air conditioning fan emits a loud noise.
Operations that cannot be performed while driving
Operating the system with.
- Registering a mobile phone to the system.
