Connecting an iPod® enables you to enjoy music from the vehicle speakers.

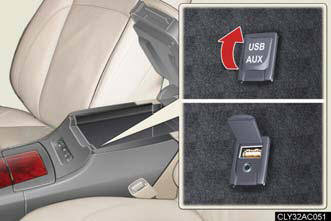

Connecting an iPod®

Connect an iPod® using an iPod® cable.

Press .

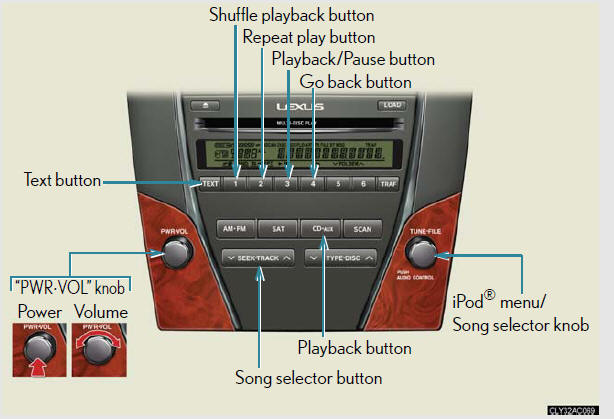

Control panel

Selecting a play mode

1. Press to select iPod® menu
mode.

2. Turning changes the play mode in
the following order:
“PLAYLISTS”→“ARTISTS”→“ALBUMS”→“SONGS”→ “PODCASTS”→“GENRES”→“COMPOSERS”→ “AUDIOBOOKS”
3. Press to select the desired play
mode.

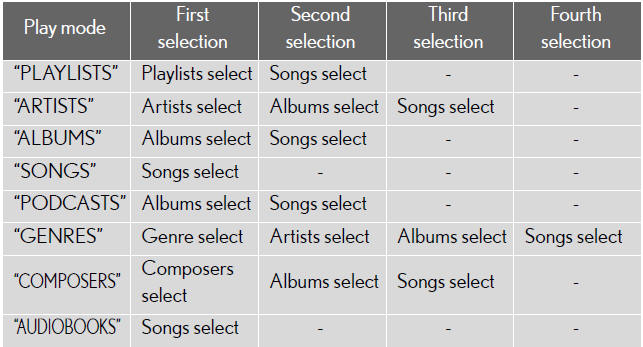

Play mode list

Selecting a list

1. Turn to display the first
selection list.

2. Press to select the desired item.

Pressing the knob changes to the second selection list.

3. Repeat the same procedure to select the desired song name.

To return to the previous selection list, select “GO BACK” or press (
).

Selecting songs

Turn or press
or
on
to select the desired
song.

Playing and pausing songs

To play or pause a song, press (
).

Fast-forwarding and rewinding songs

To fast-forward or rewind, press and hold or
on
until you hear a beep.

Shuffle playback

Playing songs from one playlist or album in random order

Press (RAND).

To cancel, press (RAND) again.

Playing songs from all the playlists or albums in random order

Press and hold (RAND) until you
hear a beep.

To cancel, press (RAND) again.

Repeat play

Press (RPT).

To cancel, press (RPT) again.

Switching the display

Press .

Each time the button is pressed, the display changes in the following order: Elapsed time → Album title → Track title → Artist name

Adjusting sound quality and volume balance

1. Press to enter iPod® menu
mode.

2. Pressing changes sound modes.

About iPod®

iPod is registered trademarks of Apple, Inc.

iPod® functions

When an iPod® is connected and the audio source is changed to iPod® mode, the iPod® will resume play from the same point in which it was last used.

- Depending on the iPod® that is connected to the system, certain functions may not be available. Disconnecting the device and reconnecting it once again may resolve some malfunctions.

iPod® problems

To resolve most problems encountered when using your iPod®, disconnect your iPod® from the vehicle iPod® connection and reset it.

For instructions on how to reset your iPod®, refer to your iPod® Owner's Manual.

Error messages

“ERROR”: This indicates a problem in the iPod® or its connection.

“NO MUSIC”: This indicates that there is no music data in the iPod®.

“EMPTY”: This indicates that some available songs are not found in a selected playlist.

“UPDATE”: This indicates that the version of the iPod® is not compatible. Upgrade
your iPod® software to the latest version.

Compatible models

iPod® 5th generation Ver. 1.2 or later.

- iPod® nano 3rd generation Ver. 1.0 or later.

- iPod® nano 2nd generation Ver. 1.1.2 or later.

- iPod® nano Ver. 1.3 or later.

- iPod® touch Ver. 1.1 or later.

- iPod® classic Ver. 1.0 or later.

iPhone®, iPod® mini, iPod® shuffle, iPod® photo and 4th generation and earlier models of iPod® are not compatible with this system.

Items related to standards and limitations are as follows: - Maximum number of lists in device: 9999.

- Maximum number of songs in device: 65535.

- Maximum number of songs per list: 65535.

CAUTION:
Caution while driving
Do not connect iPod® or operate the controls.

NOTICE:
To prevent damage to iPod® - Do not leave iPod® in the vehicle. The temperature inside the vehicle may become high, resulting in damage to the player.

- Do not push down on or apply unnecessary pressure to the iPod® while it is connected
as this may damage the iPod® or its terminal.

- Do not insert foreign objects into the port as this may damage the iPod® or its
terminal.
