Rear window and outside rear view mirror defoggers
These features are used to defog the rear window, and to remove raindrops, dew and frost from the outside rear view mirrors.

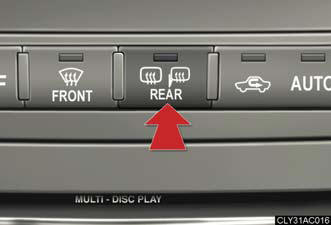

Without navigation system
ON/OFF
The defoggers will automatically
turn off after 15 to 60 minutes.
The operation time changes according to the ambient temperature and vehicle speed.

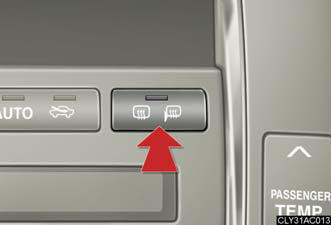

With navigation system
ON/OFF
The defoggers will automatically
turn off after 15 to 60 minutes.
The operation time changes according to the ambient temperature and vehicle speed.
CAUTION:
When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirror, as it can become very
hot
and burn you.
