Driving assist systems
To help enhance driving safety and performance, the following systems operate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heavily when operating the vehicle.
ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if the brakes are applied while driving on a slippery road surface
Generates an increased level of braking force after the brake pedal is depressed, when the system detects a panic stop situation.
VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning on slippery road surfaces.
TRAC (Traction Control)
Maintains drive power and prevents the front wheels from spinning when starting the vehicle or accelerating on slippery roads.
When the VSC/TRAC systems are operating
If the vehicle is in danger of slipping, or if the front wheels spin, the slip indicator light flashes to indicate that the VSC/TRAC systems have been engaged.
Disabling the TRAC/VSC systems
If the vehicle gets stuck in fresh snow or mud, the TRAC/VSC systems may reduce power from the engine to the wheels. You may need to turn the system off to enable you to rock the vehicle in order to free it.

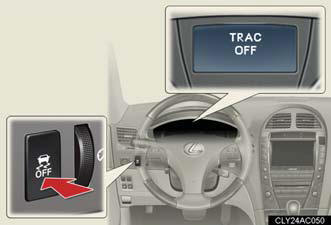

Turning off the TRAC system only
To turn the TRAC system off, quickly press and release the button.
A message will be shown on the multi-information display.
Press the button again to turn the system back on.

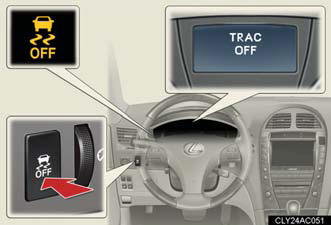

Turning off both TRAC and VSC systems
To turn the TRAC and VSC systems off, press and hold the button for more than 3 seconds while the vehicle is stopped.
A message will be shown on the multi-information display and VSC off indicator light will come on.
Press the button again to turn the systems back on.
Sounds and vibrations caused by the ABS, brake assist, VSC and TRAC systems
A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indicate
a malfunction has occurred in any of these systems.
- Any of the following conditions may occur when the above systems are operating.
None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
• The brake pedal may pulsate slightly after the ABS is activated.
• The brake pedal may move down slightly after the ABS is activated.
Reactivation of the TRAC /VSC systems after turning off the engine
Turning off the engine after turning off the TRAC/VSC systems will
Reactivation of the TRAC system linked to vehicle speed
When only the TRAC system is turned off, the TRAC system will turn on when
speed increases. However, when both TRAC and VSC systems are turned off, the systems will not turn on even when vehicle speed increases.

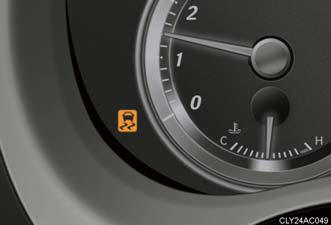

If the slip indicator comes on
It may indicate a malfunction in the VSC and TRAC function. Contact your
Any of the following conditions may result in an accident which could cause death or
The ABS does not operate effectively when - The limits of tire gripping performance have been exceeded.
- The vehicle hydroplanes while driving at high speed on the wet or slick road.
Stopping distance when the ABS is operating will exceed that of normal
The ABS is not designed to shorten the vehicle’s stopping distance. Always maintain
a safe distance from the vehicle in front of you in the following situations.
- When driving on dirt, gravel or snow-covered roads.
- When driving with tire chains.
- When driving over bumps in the road.
- When driving over roads with potholes or roads with uneven roads.
TRAC may not operate effectively when
Directional control and power may not be achievable while driving on slippery
surfaces, even if the TRAC system is operating.
Do not drive the vehicle in conditions where stability and power may be lost.
When the slip indicator flashes This situation occurs immediately while VSC is activated. Always drive carefully.
Reckless driving may cause an accident. Exercise particular care when the
When the TRAC/VSC systems are turned off
Be especially careful and drive at a speed appropriate to the road conditions.
these are the systems to help enhance vehicle stability and driving force, do not turn
the TRAC/VSC systems off unless necessary.
Make sure that all tires are of the same size, brand, tread pattern and total load
capacity. In addition, make sure that the tires are inflated to the recommended tire
The ABS and VSC systems will not function correctly if different tires are
Contact your Lexus dealer for further information when replacing tires or wheels.
