Engine immobilizer system

The vehicle's keys have built-in transponder chips that prevent the engine from starting if the key has not been previously registered in the vehicle's on-board computer.

Never leave the keys inside the vehicle when you leave the vehicle.

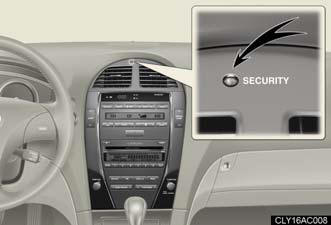

The indicator light flashes after


The indicator light flashes after the “ENGINE START STOP”
switch has been turned OFF to indicate that the system is operating.

The indicator light stops flashing after the “ENGINE START
STOP” switch has been turned to ACCESSORY or IGNITION ON mode to indicate that the system has been canceled.

System maintenance

The vehicle has a maintenance-free type of engine immobilizer system.

Conditions that may cause the system to malfunction

l If the grip portion of the key is in contact with a metallic object - If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle

Certifications for the engine immobilizer system

FCC ID: NI4TMIMB-1For vehicles sold in the USA


FCC ID: NI4TMIMB-1
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.

Operation is subject to the following two conditions: (1) this device may notFor vehicles sold in Canada
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

CAUTION:
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

NOTICE:
To ensure the system correctly Do not modify and remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
