Head restraints

Head restraints are provided for all seats.

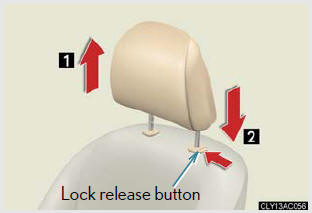

1. Up.


1. Up.

Pull the head restraints up.

2. Down.

Push the head restraint down while pressing the lock release button.

Removing the head restraints

Pull the head restraint up while pressing the


Pull the head restraint up while pressing the lock release button.

Installing the head restraints

Align the head restraint with the installation


Align the head restraint with the installation holes and push it down to the lock position.

Press and hold the lock release button when lowering the head restraint.

Adjusting the height of the head restraints

Make sure that the head restraints are


Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.

Adjusting the rear seat head restraints

Always raise the head restraint one level from the stowed position when using.

CAUTION:
Head restraint precautions Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.

- Use the head restraints designed for each respective seat.

- Adjust the head restraints to the correct position at all times.

- After adjusting the head restraints, push down on them and make sure they are locked in position.

- Do not drive with the head restraints removed.
