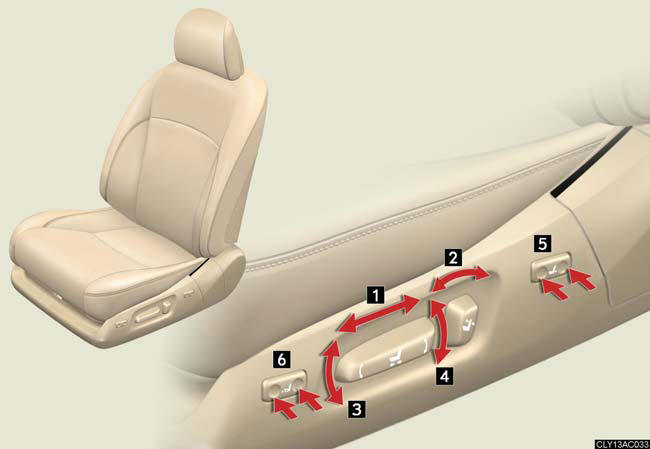

Front seats
1. Seat position switch.
2. Seatback angle switch.
3. Seat cushion (front) angle switch.
4. Vertical height adjustment switch.
5. Lumbar support switch.
6. Seat leg support adjusting switch (driver’s seat) (if equipped).
CAUTION:
Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion to
reduce
the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint
forces directly to the abdomen or your neck may contact the shoulder belt,
increasing
the risk of death or serious injury in the event of an accident.
