Wireless remote control

The wireless remote control can be used to lock and unlock the vehicle and the trunk from outside the vehicle.

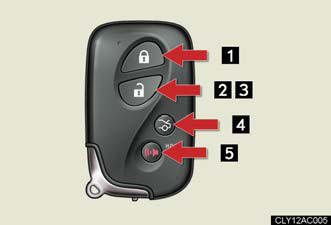

1. Locks all doors.


1. Locks all doors.

2.Unlocks all doors.

Pressing the button unlocks the drivers door. Pressing the button again within 3 seconds
unlocks the other doors.

3. Opens the windows and standard moon roof (push and hold)*.

4. Unlocks the trunk
(push and hold).

5. Sounds alarm
(push and hold).

*: This setting must be customized at your Lexus dealer.

Operation signals

Doors: A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice) Trunk: A buzzer sounds to indicate that the trunk has been unlocked.

Door lock buzzer

If a door is not fully closed, a buzzer sounds for 10 seconds if an attempt to lock the
door is made. Fully close the door to stop the buzzer, and lock the vehicle once more.

Customization that can be configured at Lexus dealer

Settings (e.g. trunk unlocking function) can be changed.

Certification for wireless remote control

FCC ID: HYQ14AAB.For vehicles sold in the USA.


FCC ID: HYQ14AAB.

FCC ID: HYQ13BZH.

FCC ID: HYQ14ABK.

FCC ID: HYQ13BZW.

NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.

FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment.

NOTE:For vehicles sold in Canada


NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
