Air conditioning filter

The air conditioning filter must be cleaned or changed regularly to maintain
air conditioning efficiency.

Removal method

1. Set the air conditioning system to recirculated mode.

The air conditioning filter case cannot be removed with the system in the outside air mode.

2. Turn the POWER switch off.

3. Open the glove box. Lift and


3. Open the glove box. Lift and remove the partition.

4. Remove the glove box cover.


4. Remove the glove box cover.

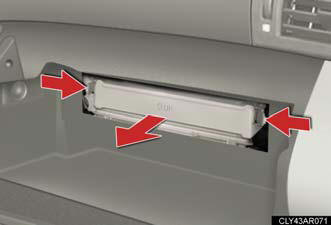

5. Remove the filter cover.


5. Remove the filter cover.

6. Remove the air conditioning filter


6. Remove the air conditioning filter and replace it with a new one.

The ↑UP mark shown on the filter should be pointing up.

Cleaning method

If the filter is dirty, clean by blowing


If the filter is dirty, clean by blowing compressed air through the filter from the underside.

Hold the air gun 2 in. (5 cm) from the filter and blow for approximately 2 minutes at 72 psi (500 kPa, 5.0 kgf/cm2 or bar).

If an air gun is not available, have the filter cleaned by your Lexus dealer.

Checking interval

Inspect, clean and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, please refer to the Owner's Manual Supplement or Scheduled Maintenance.)

If air flow from the vents decreases dramatically

The filter may be clogged. Check the filter and replace if necessary.

NOTICE:
To prevent damage to the system When using the air conditioning system, make sure that a filter is always installed.

When cleaning the filter, do not clean with water.
