Maintenance data (fuel, oil level, etc.)

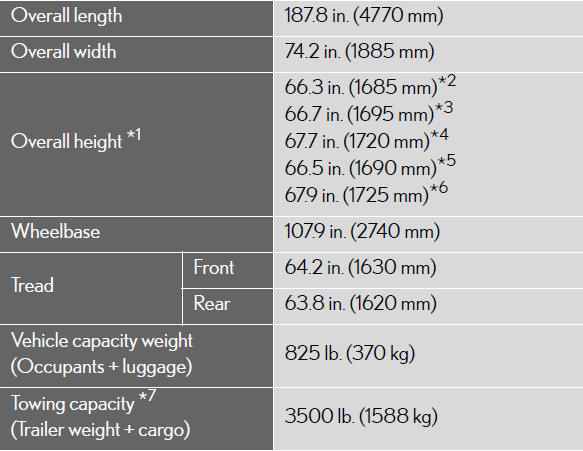

Dimensions and weight

*1: Unladen vehicles.


*1: Unladen vehicles.

*2: Vehicles without roof antenna and roof rails.

*3: Vehicles with roof antenna but without electronically modulated air suspension.

*4: Vehicles with roof rails but without electronically modulated air suspension.

*5: Vehicles with roof antenna and electronically modulated air suspension.

*6: Vehicles with roof rails and electronically modulated air suspension.

*7: AWD models with towing package.

Vehicle identification

Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle.

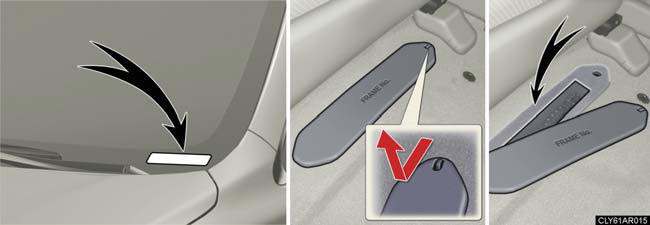

This number is stamped on the top left of the instrument panel. On some


This number is stamped on the top left of the instrument panel. On some models,
this number is also stamped under the front passenger seat.

This number is also on the Certification


This number is also on the Certification Label.

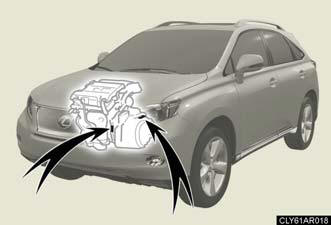

Engine number and electric motor (traction motor) number

The numbers are stamped on the


The numbers are stamped on the locations shown in the illustration.

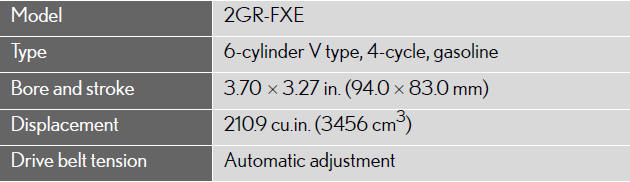

Engine

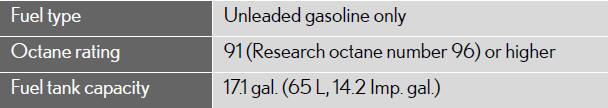

Fuel


Fuel

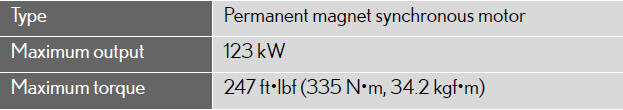

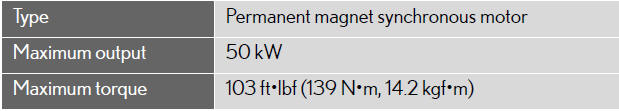

Electric motor (Traction motor)


Electric motor (Traction motor)

- Front

- Rear (AWD models)


- Rear (AWD models)

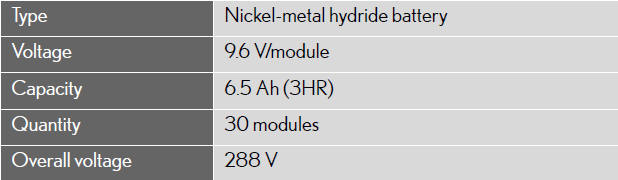

Hybrid battery (Traction battery)


Hybrid battery (Traction battery)

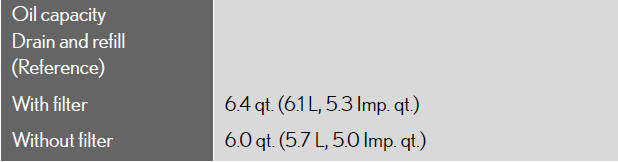

Lubrication system


Lubrication system

Engine oil selection


Engine oil selection

Toyota Genuine Motor Oil is used in your Lexus vehicle. Use Lexus approved Toyota Genuine Motor Oil or equivalent to satisfy the following grade and viscosity.

Oil grade: ILSAC multigrade engine oil.

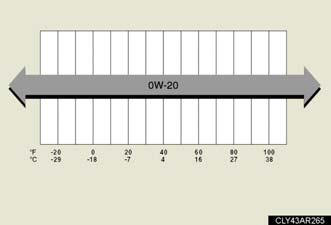

Recommended viscosity: SAE 0W-20.

SAE 0W-20 is the best choice for


SAE 0W-20 is the best choice for good fuel economy and good starting in cold weather.

If SAE 0W-20 is not available, SAE 5W-20 oil may be used.

However, it must be replaced with SAE 0W-20 at the next oil change.

The 0W portion of the oil viscosity rating indicates the characteristic of the oil
which allows cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.

The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating temperature.

An oil with a higher viscosity may be better suited if the vehicle is operated at high speeds, or under extreme load conditions.

How to read oil container label: The ILSAC (International Lubricant Standardization and Approval Committee) Certification Mark is added to some oil containers to help you select the oil you should use.

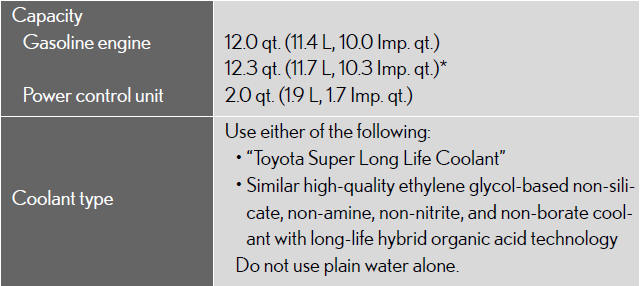

Cooling system


Cooling system

*: With towing package.


*: With towing package.

Ignition system

NOTICE:


NOTICE:
Iridium-tipped spark plugs Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

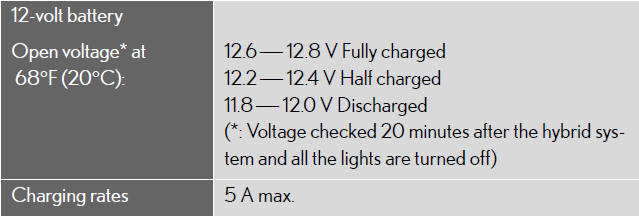

Electrical system

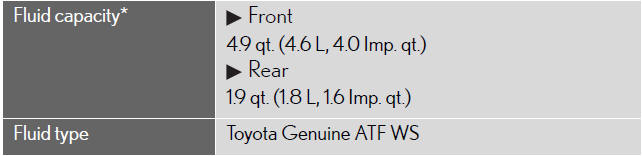

Hybrid Transaxle


Hybrid Transaxle

*: The fluid capacity is a reference quantity. If replacement is necessary,


*: The fluid capacity is a reference quantity. If replacement is necessary, contact
your Lexus dealer.

NOTICE:
Transmission fluid type
Using transmission fluid other than Toyota Genuine ATF WS may cause ultimately damage to the vehicles transmission.

Brakes

*1: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51


*1: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51 kgf) while the hybrid system is operating.

*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N, 30.6 kgf).

Steering

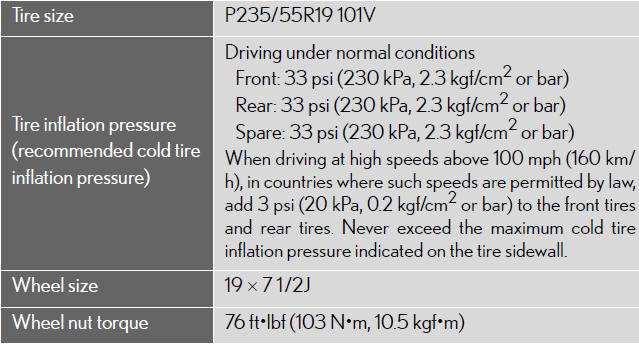

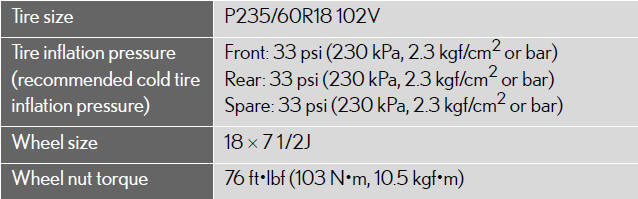

Tires and wheels


Tires and wheels

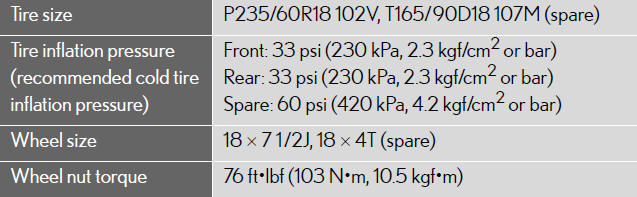

- Type A.

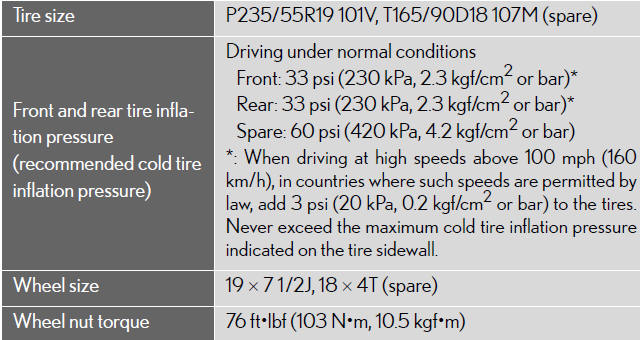

- Type B.


- Type B.

- Type C.


- Type C.

- Type D.


- Type D.

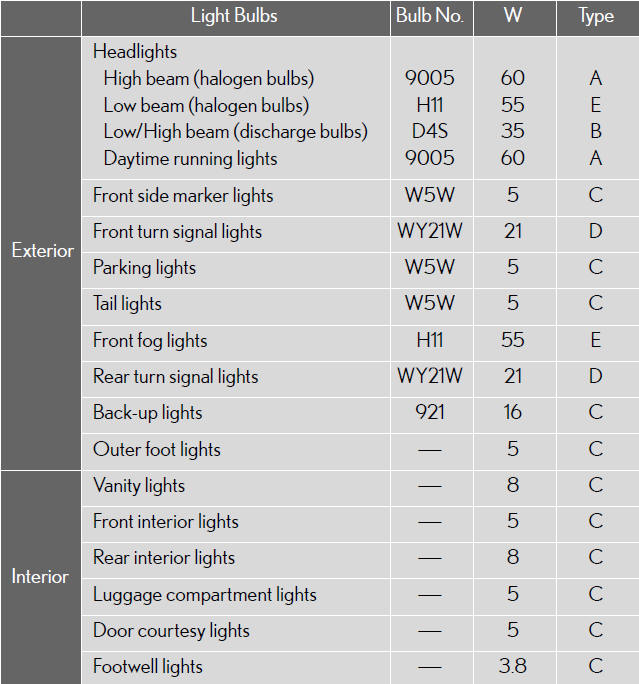

Light bulbs


Light bulbs

A: HB3 halogen bulbs.


A: HB3 halogen bulbs.

B: D4S discharge bulbs.

C: Wedge base bulbs (clear).

D: Wedge base bulbs (amber).

E: H11 halogen bulbs.
